R0000322 Tensioner Pulley Assembly

Assembly instructions for saw tensioner pulley

Difficulté

Medium Moyen

Durée

15 minute(s) minute(s)


Introduction

Parts Required

B0000002 Bearing: 12/28dia x 8mm Shielded x 2

D0004733 Belt Adjuster Pulley x 1

D0004735 Belt Adjuster Pin x 1

F0000028 M8 x 50 socket cap x 1

F0000059 M8 A Form washer x 1

F0000114 M8 Nut standard pitch x 1

B0000016 28mm internal circlip x 1

Tools Required

Bearing Press

FE10 Solvent aerosol

Loctite 641 bearing fit

Internal circlip pliers

Étape 1 - Degrease Components

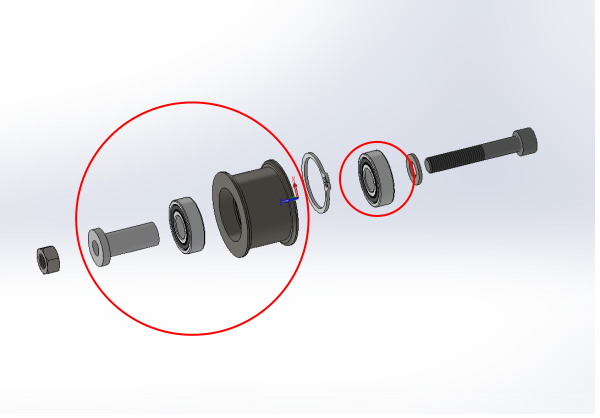

1 Use FE10 solvent to wash parts shown to remove residual grease and contaminants

2 Thoroughly dry with compressed air line gun

Étape 2 - Fit Circlips to Pulley

Fit 28mm internal circlips to pulley

Étape 3 - Apply Loctite and fit bearings

1 Apply Match head size drops to outer face of one bearing, smear around outer surface with finger and press into bore using bearing press

2 Repeat for second bearing

3 Remove any excess bearing fit with a rag from front faces

Étape 4 - Fit Belt Adjuster Pin

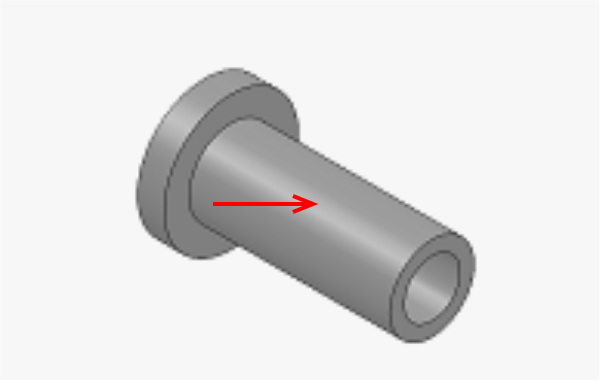

1 Apply 4 Match head size drops of Loctite 641 to adjuster pin on face shown

2 Smear with finger to coat face

3 Use press to fit to bearing assembly

4 Remove excess bearing fit from front faces with a clean rag

Étape 5 - Finalise assembly

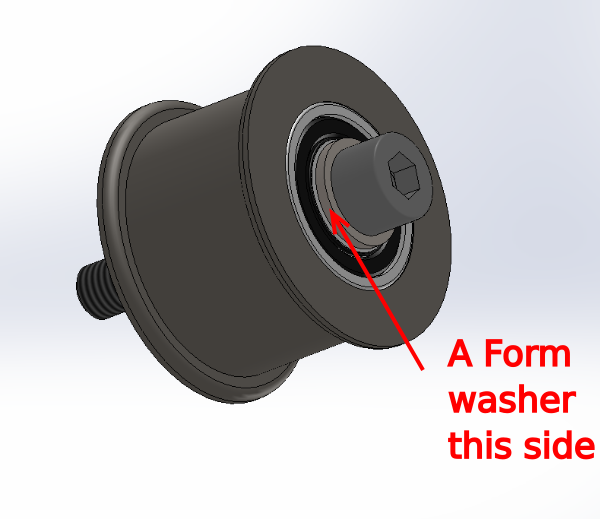

1 Fit M8 A form washer to M8 x 50 socket cap

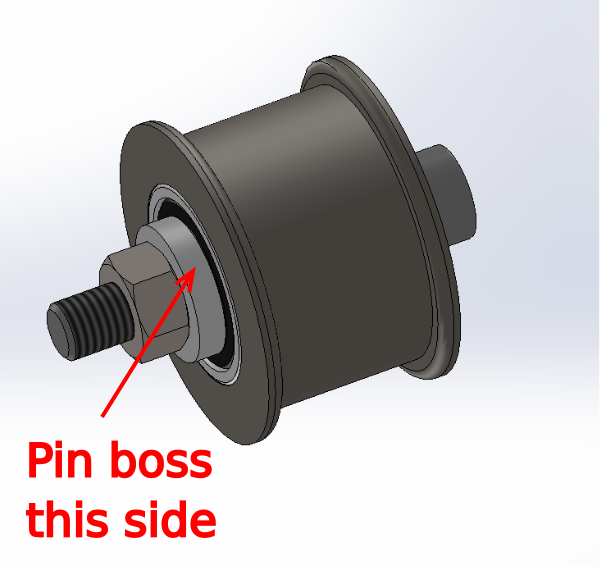

2 insert into pulley assembly orientated as shown

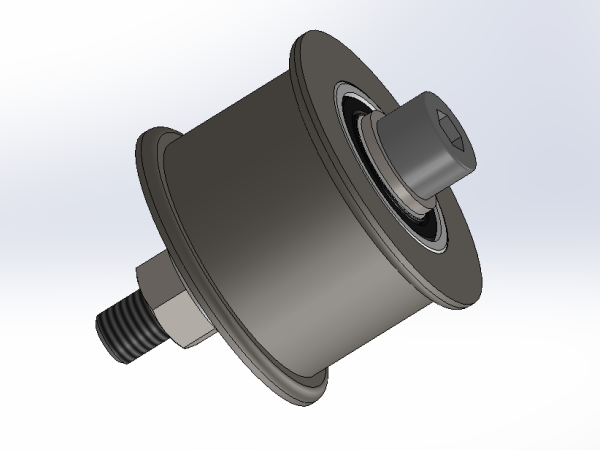

3 Fit M8 lock nut to captivate as shown

en none 0 Draft
